Indoor media 480*480mm
It can be used in indoor commercial displays, exhibition halls, conference rooms, corner pillars and other corner locations.
https://www.techiegoled.com/Indoor-media-480-480mm.html
Application scenarios
It can be used in indoor commercial displays, exhibition halls, conference
rooms, corner pillars and other corner locations.
Solution

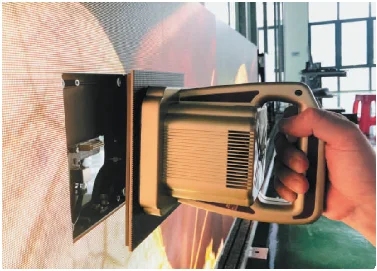

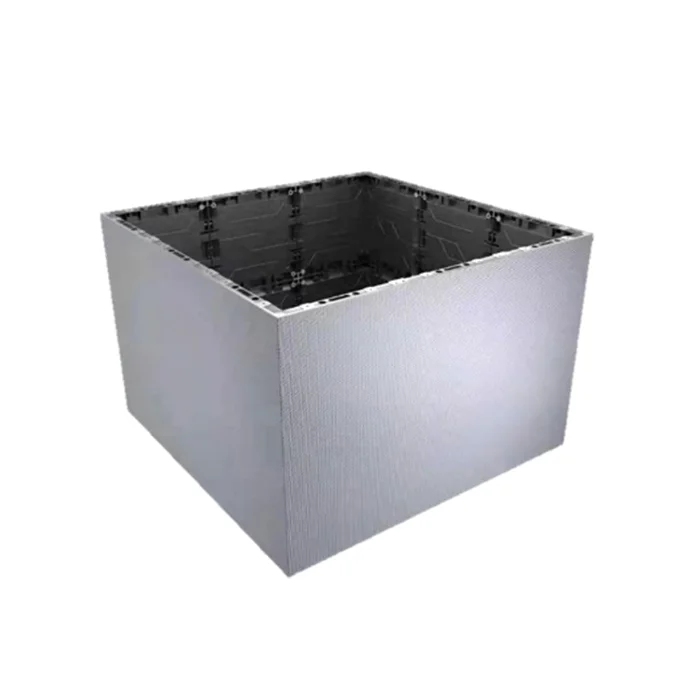

Integrated die-cast aluminum molding, can be installed at 90° angle, flexible
and fast installation, full front maintenance, the cabinet can be cut, and can
be spliced with standard cabinets after cutting, realizing module-level size
adjustment, and customers can flexibly match the screen size need
|
Pixel Pitch |
P1.875 |
P2.5 |
P3 |
|
Lamp Bead Model |
1515 |
2121 |
2121 |
|
Viewing Distance |
≥2m |
≥2m |
≥3m |
|
Pixel Points |
294912 |
165888 |
115200 |
|
Brightness |
≥800cd/㎡ |
≥1200cd/㎡ |
≥1200cd/㎡ |
|
Protection Grade |
IP43 |
IP43 |
IP43 |
|
Angle of View |
140° |
140° |
140° |
|
Gray Scale |
256 |
256 |
256 |
|
Scan |
1/32 |
1/24 |
1/20 |
|
ModuleSize |
240*240 |
240*240 |
240*240 |
|
Module Pixels |
128*128 |
96*96 |
80*80 |
|
Refresh |
≥3840HZ |
≥3840HZ |
≥3840HZ |
